Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Device construction
EV009211
-
Motor drive integrated
FALSE
-
Degree of protection (IP)
EV006415
-
Type of control element
EV000421
-
DIN rail (top hat rail) mounting optional
FALSE
-
Position of connection for main current circuit
EV007926
-
Motor drive optional
TRUE
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
With switched-off indicator
TRUE
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
70
-
With integrated under voltage release
FALSE
-
Complete device with protection unit
TRUE
-
Rated voltage
440
-
Overload release current setting
250
-
Rated permanent current Iu
570
-
Integrated earth fault protection
TRUE
-
Adjustment range short-term delayed short-circuit release
375
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
-
Number of auxiliary contacts as change-over contact
-
Adjustment range undelayed short-circuit release
855

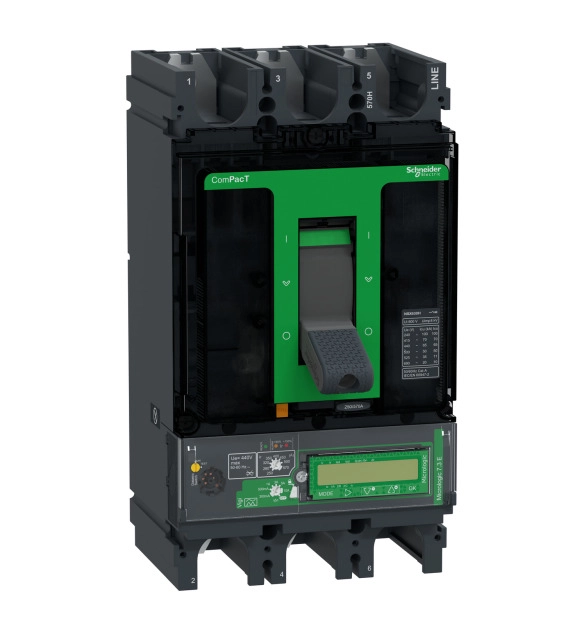

Автоматичен прекъсвач, ComPacT NSX630H, 70kA/415VAC, 3 полюса, MicroLogic Vigi 7.3E изключвателно устройство 570A
Item number: C63H37E570
